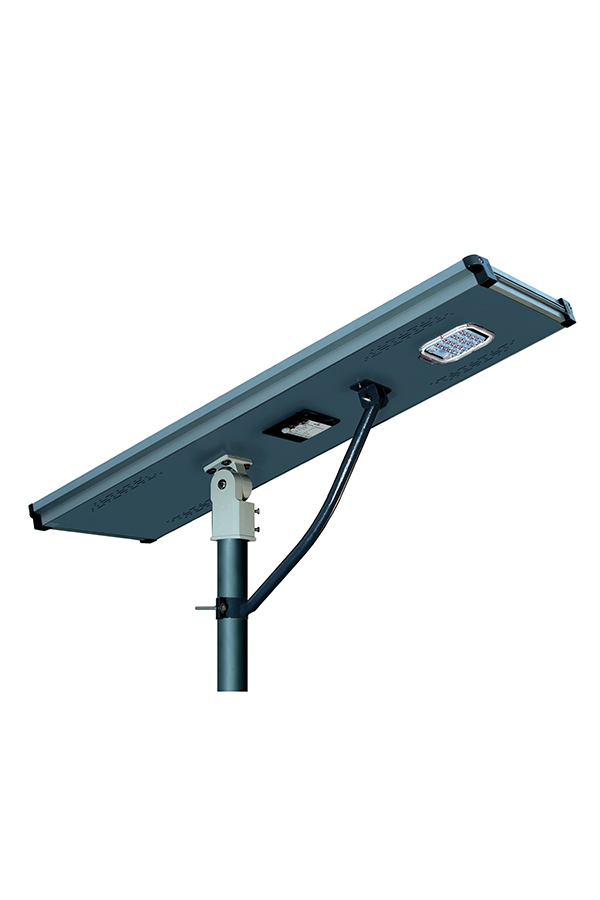

ALL-IN-ONE (With Camera)

The All-in-One Solar street light with Camera is an integrated solution for CCTV monitoring and Solar lighting. It comes with an internal lithium battery pack, a high lumen LED lamp, an advanced MPPT charge controller, a highly efficient Solar Panel, an optional PIR motion sensor for dimming ,and an inbuilt full HD 1080p camera.

Key Features:

  • Dusk to Dawn LED operation and 24x7 Wifi Camera surveillance.
  • Solar Powered System
  • 20.8V, 30Ah- 42Ah Li-FeO4 Battery Powered.
  • Two stage Battery Charged algorithm for greater battery life.
  • Audio - Video Recording on 1080p with wide viewing angle for larger area coverage.
  • Remote live View from anywhere (Android / iPhone)
  • PIR Sensor for Dimming and Motion Detection.
  • High lumen, Super long life span LEDs
  • Cable free Installation
  • Advanced MPPT Charge Controller with ultra fast MTTP algorithm.

Applications:

  • Factories
  • Hospital
  • Commercial Building
  • Colleges
  • Residential
  • Farm House
  • High Rise Apartments
  • Rural Narrow Highways
  • Resorts & Tourist Areas

Product Information

LED Reted Power 12W LED 15W LED 18W LED 20W LED 24W LED 30W LED 36W LED 40W LED 50W LED 60W LED 80W LED 100W LED 120W LED
Power of PV Module (W) - 1 Day Autonmy 40 Wp 40 Wp 50 Wp 60 Wp 75 WP 75 Wp 100 Wp 100 Wp 120 Wp 150 Wp 170 Wp 200 Wp 250 Wp
Lithium Battery Capacity (Lifepo4) 12.8V , 12AH 12.8V , 15AH 12.8V , 18AH 12.8V , 24AH 12.8V , 24AH 12.8V , 30AH 12.8V , 36AH 12.8V , 36AH 12.8V , 48AH 12.8V , 54AH 12.8V , 54AH 25.6V , 30AH 25.6V , 72AH
Power of PV Module (W)-2 Day Autonmy 50 Wp 60 Wp 60 Wp 75 Wp 100 Wp 100 Wp 120 Wp 120 Wp 150 Wp 170 Wp 220 Wp NA NA
Lithium Battery Capacity (Lifepo4) 12.8V , 18AH 12.8V , 18AH 12.8V , 24AH 12.8V , 30AH 12.8V , 36 AH 12.8V , 42AH 12.8V , 54AH 12.8V , 54AH 12.8V , 72AH 25.6V , 78AH 25.6V , 36AH NA NA
Typical Luminous Flux (Lm) 1980 2475 2970 3300 3960 4950 5940 6600 8250 9900 13200 16500 19800
Colour Temperature (CCT) 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K 3000K - 6500K
Mounting Pole Tubular Pole Tubular Pole Tubular Pole Tubular Pole Tubular Pole Tubular Pole Tubular Pole Tubular Pole Octagonal Pole Octagonal Pole Octagonal Pole Octagonal Pole Octagonal Pole
Recommneded Installation Height (Mtr.) 5 Mtr. 5 Mtr. 5 Mtr - 6 Mtr. 5 Mtr - 6 Mtr. 6 Mtr. 6 Mtr. 6 Mtr. 6 Mtr. 7 Mtr. 7 Mtr. 8 Mtr - 9 Mtr. 8 Mtr - 9 Mtr. 12 Mtr.
Recommended Installation Height (Mtr.) 10- 15 Mtr. 20-30 Mtr. 30-40 Mtr.
Charge Controller Type MPPT MPPT MPPT MPPT MPPT MPPT MPPT MPPT MPPT MPPT MPPT MPPT MPPT
Lenses Type Lenses Lenses Lenses Lenses Lenses Lenses Lenses Lenses Lenses Lenses Lenses Lenses Lenses
LED Driver Efficiency > 92% > 92% > 92% > 92% > 92% > 92% > 92% > 92% > 92% > 92% > 92% > 92% > 92%
Ingress Protection IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65 IP65
No Load Current Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp Less than 20Amp
Backup 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs* 12 Hrs*
Dimensions of Product (mm) 775 X 340 X 60 MM 920 X 340 X 60MM 920 X 340 X 60MM 1060 X 340 X 60 MM 1280 X 340 X 60 MM 1280 X 340 X 60 MM 1050 X 340 X 60 MM 1240 X 510 X 60 MM 1550 X 510 C 60 MM 1840 X 510 X 60 MM 1840 X 510 X 60 MM 1840 X 510 X 60 MM 1840 X 510 X 60 MM
Dimensions of Inner Pakcing Box 975 X 420 X 126 1090 X 420 X 126 MM 1090 X 420 126 MM 1260 X 420 X 126 MM 1460 X 420 X 126 MM 1460 X 420 X 126 MM 1220 X 420 X 26 MM 1410 X 570 X 150 MM 1720 X 570 X 150 MM 2010 X 570 X 150 MM 2010 X 570 X 150 MM 2010 X 570 X 150 MM 2010 X 570 X 150 MM
Installation Diameter ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM ∅80 MM
Gross Weight of Product (kg) 11.5 Kg 12 Kg 12 Kg 13 Kg 14.4 Kg 14.4 Kg 16.30 Kg 22.1 Kg 22.1 Kg 37 Kg 37 Kg 38.5 Kg 40 Kg
Mastern Packing 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box 1 Nos 1 in Master Box
Weight - Master Packing 12.5 Kg 13 Kg 13 Kg 14 Kg 15 Kg 16 Kg 17 Kg 23 Kg 32 Kg 38 Kg 38 Kg 40.4 Kg 41.4 Kg
Lighting mode Light Will Glow in the Full Bright Mode 100% For 4 Hrs & After 4 Hrs .Light Will Dim to 33 % Brightness & Motion Sensor Will be activated for the detection of motion.If any motion is deducted in 12 Mtr area around the Light , then it Will Glow in Full mode 2 Mins , After that, it Will be again Come to 33% Power .
Protections Battery Deep Discharge , Over charge Protection , Open Load Protection , Reverse Current Flow Protection , Short Circuit Protection and Temperature Compensation.
Indication Red LED Blink - Battery Low
Green LED Blinking - Battery Charging
Green LED Continuos Glow - Battery Full charge
Optional Features Remote monitoring System (RMS) / CCTV Camera / Bluetooth / Hybrid / PIR Sensor

Installation method

Why Choose ielecssol Solar Street Light ?

  • Proven reliability since 2011
  • BIS, MNRE, RoHS, CE and IEC approved
  • Customized options in wattage, backup, and mounting arrangements
  • Make in India initiative contributor
