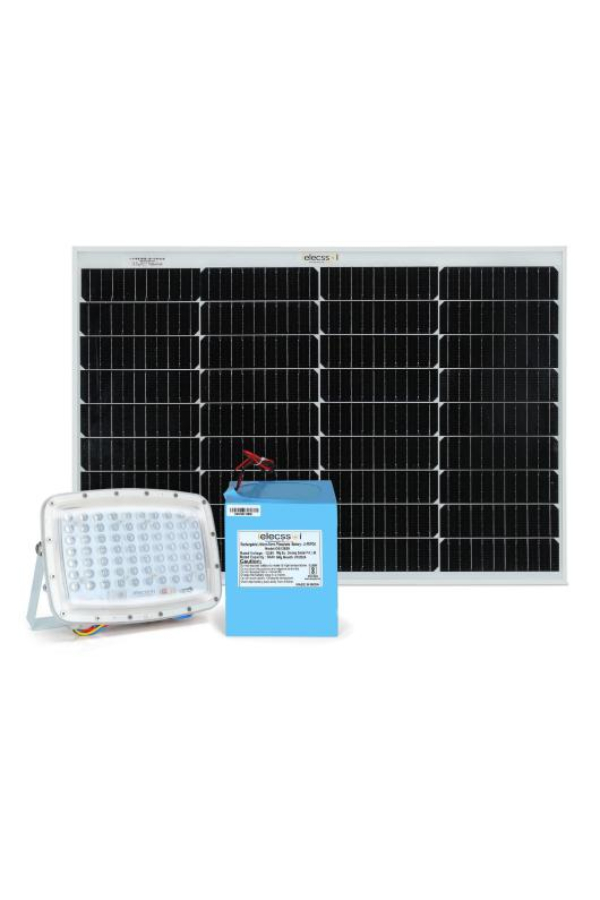

The Innova Floodlight Model is a high-performance, energy-efficient solar lighting solution designed to deliver powerful and consistent illumination in outdoor spaces. Available in 20W to 100W capacities, it integrates advanced solar technology with robust, weather-resistant construction, ensuring long-lasting operation without dependence on grid electricityEngineered for versatility, the Innova Floodlight is ideal for security lighting, outdoor events, open spaces, and landscape applications, providing sustainable, cost-effective, and reliable illumination even in challenging environments.
| LED Rated Power | 20W LED | 30W LED | 40W LED | 50W LED | 60W LED | 80W LED | 100W LED |
|---|---|---|---|---|---|---|---|
| Power of PV Module (W) Mono Perc | 60 Wp | 80 W | 120 Wp | 150 Wp | 170 Wp | 250 Wp | 275 Wp |
| Lithium Battery Capacity (LifePO4) | 12.8V , 18AH | 12.8V , 24AH | 12.8V , 30AH | 12.8V , 36AH | 12.8V , 42AH | 25.6V , 30AH | 25.6V , 36AH |
| Typical Luminous Flux (Lm) | 3000 | 4500 | 6000 | 7500 | 9000 | 12000 | 15000 |
| Colour Temperature (CCT) | 5700K - 6500K | 5700K - 6500K | 5700K - 6500K | 5700K - 6500K | 5700K - 6500K | 5700K - 6500K | 5700K - 6500K |
| Application Type | Tubular Pole, High Mast, Parapit Wall, Industrial Shed | ||||||
| Charge Controller Type | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT |
| Lenses Type | Lense | Lense | Lense | Lense | Lense | Lense | Lense |
| LED Driver Efficiency | > 92% | > 92% | > 92% | > 92% | > 92% | > 92% | > 92% |
| No Load Current | Less than 20Amp | Less than 20Amp | Less than 20Amp | Less than 20Amp | Less than 20Amp | Less than 20Amp | Less than 20Amp |
| Ingress Protection | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Backup | 12 Hrs* | 12 Hrs* | 12 Hrs* | 12 Hrs* | 12 Hrs* | 12 Hrs* | 12 Hrs* |
| Dimensions of Product (MM) | 185 X 270 X 55 MM | 185 X 270 X 55 MM | 185 X 270 X 55 MM | 185 X 270 X 55 MM | 185 X 270 X 55 MM | 185 X 270 X 55 MM | 185 X 270 X 55 MM |
| Gross Weight of Product (Kg) | 1.2 Kg | 2.3 Kg | 2.3 Kg | 2.3 Kg | 2.3 Kg | 2 Kg | 2 Kg |
| Master Packing | 20 Nos 1 in Master Box | 20 Nos 1 in Master Box | 20 Nos 1 in Master Box | 20 Nos 1 in Master Box | 20 Nos 1 in Master Box | 8 Nos 1 in Master Box | 8 Nos 1 in Master Box |
| Weight - Master Packing | 23.9 Kg | 47.94 Kg | 47.94 Kg | 47.94 Kg | 47.94 Kg | 16.1 Kg | 16.1 Kg |
| Lighting Mode | Light Will Glow in 100% Brightness For 4 Hrs & then, it will dim to 50% Brightness For Balance 8 Hrs . | ||||||
| Protections | Battery Deep Discharge , Over charge Protection , Open Load Protection , Reverse Current Flow Protection , Short Circuit Protection and Temperature Compensation. | ||||||
| Indication | Red LED Blink - Battery Low Green LED Blinking - Battery Charging Green LED Continuos Glow - Battery Full Charge |
||||||
| Optional Features | Remote Monitoring System (RMS) / CCTV Camera / Bluetooth / Hybrid | ||||||
